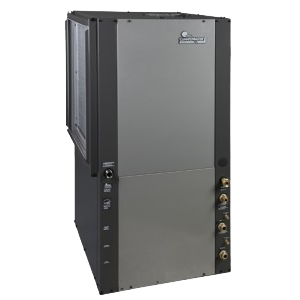

TZ Tranquility 22 Digital Series Geothermal Heat Pump

The Tranquility 22 Digital Series is an economical alternative to the TE model for significant energy savings AND unmatched home comfort. The Tranquility 22 Digital is a game-changing new geothermal heat pump that is the first in the industry to integrate digital communicating controls, vFlow internal variable-speed water flow, two-stage capacity, and variable-speed fan. The system is engineered for quiet, efficient operation and comes in multiple capacities.

  • Extra high efficiency (22 EER) produces significant energy savings.
  • Optional hot water generator can lower home hot water cost.
  • EarthPure Ozone Safe refrigerant has higher efficiencies and zero ozone depletion for unprecedented environmental protection.
  • MERV 7 filter removes up to nine times more dust, lasts three times longer and captures nearly 100% of pollen and spores compared to traditional fiberglass air filters.
  • Two-stage technology automatically adjusts itself to provide the optimum, consistent indoor air temperature regardless of outdoor weather extremes.
  • Variable-speed blower motor (standard) adapts to various duct systems for greater flexibility and helps even out hot or cold spots.
  • Insulated compressor compartment and interior cabinet, plus no noisy outdoor fans reduce noise.
  • Automatic alerts, simplified controls, and easy lift-out access panels make it easy to use and service.
  • Tin plated air coil resists corrosion for longer life and improves moisture removal capabilities for additional comfort.
  • Cabinets are heavy-gauge galvanized steel and epoxy powder coated for a durable and long-lasting finish.
  • The drain pan is stainless steel, both corrosion and stain resistant.
  • Tranquility 22 is engineered for safety with compressor, overflow, and freeze protection, plus a shut-down switch and fault lockout.
MODELClg Capacity MBtuHEERHtg Capacity MBtuHCOPDimensions HxWxDWeight Lbs.
TZ02422.9 15.2 18.4 3.6 40.5x22.4x22.4 0
TZ03029.9 15.7 23.8 3.6 40.5x22.4x22.4 0
TZ03624.7 14.8 27.9 3.6 46.5x22.4x26 0
TZ04243.1 16.1 33.3 3.4 46.5x22.4x26 0
TZ04845.1 15.5 35.6 3.7 50.5x25.4x29.3 0
TZ06059.8 16.1 45.9 3.5 50.5x25.4x29.3 0

Warranty Information

  • All Parts for 120 months -
  • Limited Labor for 60 months -

Available Documents

  • View Document (Consumer Literature, Customer Information, Color)
  • View Document (Cut Sheet, Consumer Literature, Customer Information, Color)
  • View Document (Operating Cost Information, Installation & Operation, Service Guide, In the Box)
  • View Document (Residential Product Line, Consumer Literature, Customer Information)
