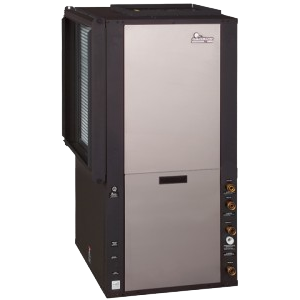

TS Tranquility 20 Series Geothermal Heat Pump

The Tranquility 20 Series has some of the industrys highest single-stage efficiency ratings and provides you the MOST energy savings of any single-stage space conditioning system available. The Tranquility 20 advanced scroll compressor technology and microprocessor controls allow the Tranquility 20 to operate at the most efficient level for all weather conditions. The system is engineered for quiet, efficient operation and comes in multiple capacities and both horizontal and vertical configurations.

  • Extra high efficiency (20 EER) produces significant energy savings.
  • Optional hot water generator can lower home hot water cost.
  • EarthPure Ozone Safe refrigerant has higher efficiencies and a non-ozone depleting formula for unprecedented environmental protection.
  • MERV II filter removes up to nine times more dust, lasts three times longer and captures nearly 100% of pollen and spores.
  • Insulated compressor compartment and interior cabinet, plus no noisy outdoor fans reduce noise.
  • Automatic alerts, simplified controls, and easy, lift-out access panels make it easy to use and service.
  • Tin plated air coil resists corrosion for longer life and improves moisture removal capabilities for additional comfort.
  • Cabinets are heavy-gauge galvanized steel and epoxy powder coated for a durable and long-lasting finish.
  • The drain pan is stainless steel, both corrosion and stain resistant.
  • Tranquility 20 is engineered for safety with compressor, overflow, and freeze protection, plus a shut-down switch and fault lockout.
MODELClg Capacity MBtuHEERHtg Capacity MBtuHCOPDimensions HxWxDWeight Lbs.
TS01819.5 18.4 14.5 3.6 44.6x22.4x25.6 0
TS02425.3 18.9 19.2 3.6 48.5x22.4x25.8 0
TS03029.2 18.5 22.2 3.9 48.5x22.4x25.6 0
TS03634.3 19.2 25.9 4.1 50.5x25.4x30.6 0
TS04240.1 19.4 28.7 3.8 54.5x25.4x30.6 0
TS04849.6 16.8 26.6 3.4 54.5x25.4x30.6 0
TS06063.9 17.2 46.9 3.7 58.5x25.4x30.6 0
TS07072.9 16.2 53.8 3.4 58.5x25.4x30.6 0

Warranty Information

  • All Parts for 120 months -
  • Limited Labor for 60 months -

Available Documents

  • 59-8901.pdf (Consumer Literature, Customer Information)
  • 59-8903.pdf (Service Guide, Installation & Operation, In the Box)
  • 59-8904.pdf (Cut Sheet, Customer Information, Consumer Literature)
  • 59-8932.pdf (Residential Product Line, Customer Information, Consumer Literature)
