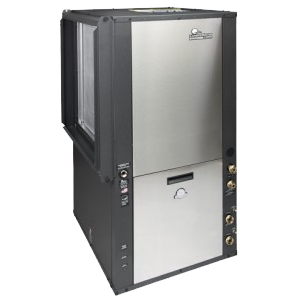

TE Tranquility 30 Digital Series Geothermal Heat Pump

The Tranquility 30 Digital Series is one of the most advanced, efficient, comfortable and environmentally friendly methods of heating and cooling available to homeowners. Its advanced design includes two-stage compressor operation, variable-speed indoor fan, vFlow variable water flow technology and iGate communicating controls.

vFlow internal variable water flow technology reduces water pumping power consumed by 60-80% compared to traditional external pumping modules, which can save over $100 per year in an average 2,000 square foot home. iGate communicating controls constantly monitor and control system operation for increased reliability and longer system life.

  • Extra high efficiency (30 EER) produces significant energy savings.
  • Consistent geothermal (below ground) temperature reduces system energy use.
  • vFlow technology reduces water pumping power consumed by 60-80% compared to traditional external pumping modules.
  • Optional hot water generator can lower home water heating costs
  • Two-stage technology automatically adjusts itself to provide consistent indoor air temperatures regardless of outdoor weather extremes.
  • Variable-speed blower motor (standard) adapts to various duct systems for greater flexibility and helps even out hot or cold spots.
  • Insulated compressor compartment and interior cabinet reduces system noise, plus no noisy outdoor fans are used.
  • Tin plated air coil resists corrosion for longer life and improves moisture removal capabilities for additional comfort.
  • Cabinets are heavy-gauge galvanized steel and epoxy powder coated for a durable, long-lasting finish.
  • The stainless steel drain pan is corrosion and stain resistant.
  • Tranquility 30 is engineered for safety with compressor, overflow, and freeze protection, plus a shut-down switch and fault lockout.
  • High-efficiency filter system provides superior indoor air quality.
MODELClg Capacity MBtuHEERHtg Capacity MBtuHCOPDimensions HxWxDWeight Lbs.
TE02626.3 19.9 18.9 4.0 48.5x22.4x25.6 0
TE03839.9 20.3 29.2 4.4 50.5x25.4x30.6 0
TE04950.8 19.3 27.2 4.0 54.5x25.4x30.6 0
TE06466.2 18.8 48.7 3.9 58.5x25.4x30.6 0
TE07271.7 16.9 55.8 3.7 58.5x25.4x30.6 0

Warranty Information

  • All Parts for 120 months -
  • Limited Labor for 60 months -

Available Documents

  • View Document (Consumer Literature, Customer Information, Color)
  • View Document (Cut Sheet, Consumer Literature, Customer Information, Color)
  • View Document (Installation & Operation, In the Box)
  • View Document (Residential Product Line, Consumer Literature, Customer Information)
  • View Document (Installation & Operation, Service Guide, In the Box)
